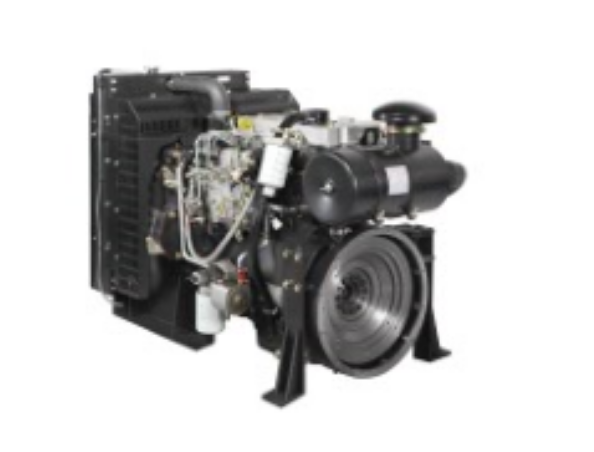

1004TG

POWER PACKIN-LINE PUMP

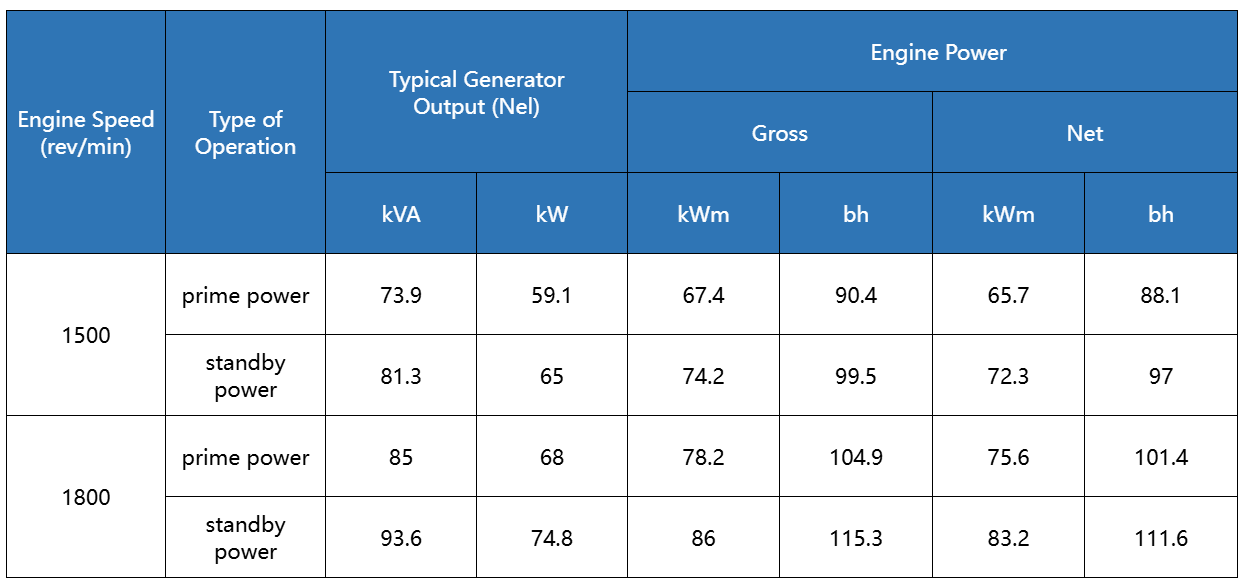

65.7kWm 1500 rev/min

75.6 kWm 1800 rev/min

GENSET POWER

●High Power Density

Power output and Jorque per liter aresuperior to normal level with optimizedstructure strengthening.

●Low Fuel Consumption

The excellent combustion system can reduce fuel consumption,emission and noise, meanwhile increase engine power output.

●Easy Maintenance

All routine service items are situated on the right hand side of engine allowing easy maintenance and minimum machine downtime.

●Durability & Reliability

Start normally at -10'C without preheated device, start smoothly at-25'C through flame glow plug cold start aid.

Maximum cooling efficiency is provided by a gear driven water pump and independent fan drive. Leakfree operation is ensured by Viton crankshaft seals and sophisticated controlled swelljoints, giving protection in the toughest conditions.

Rating Base: Iso 8528, GB/T2820

Lubricating oil: API C

Standard Specification

Air inlet

Mounted air filter

Fuel system

In-line fuel injection pump

Spin-on full flow fuel filter and pre-filter

Lubrication system

Flat bottomed iron sump Spin-0n

full flow oil filter Oil cooler

Cooling system

Thermostat controlled cooling system、with gear driven water pump

Radiator

20"belt-driven pusher fan and guards

Electrical system

12 volt starter motor and alternator Oil

pressure and water temperature switch & sensor

1 2 volt shut down solenoid

Flywheel and housing

High inertia flywheel, size :10/11 vz

SAE3 flywheel housing

Mountings

Front engine mounting bracket

Optional Equipment

24 volt alternator

24 volt starter motor
