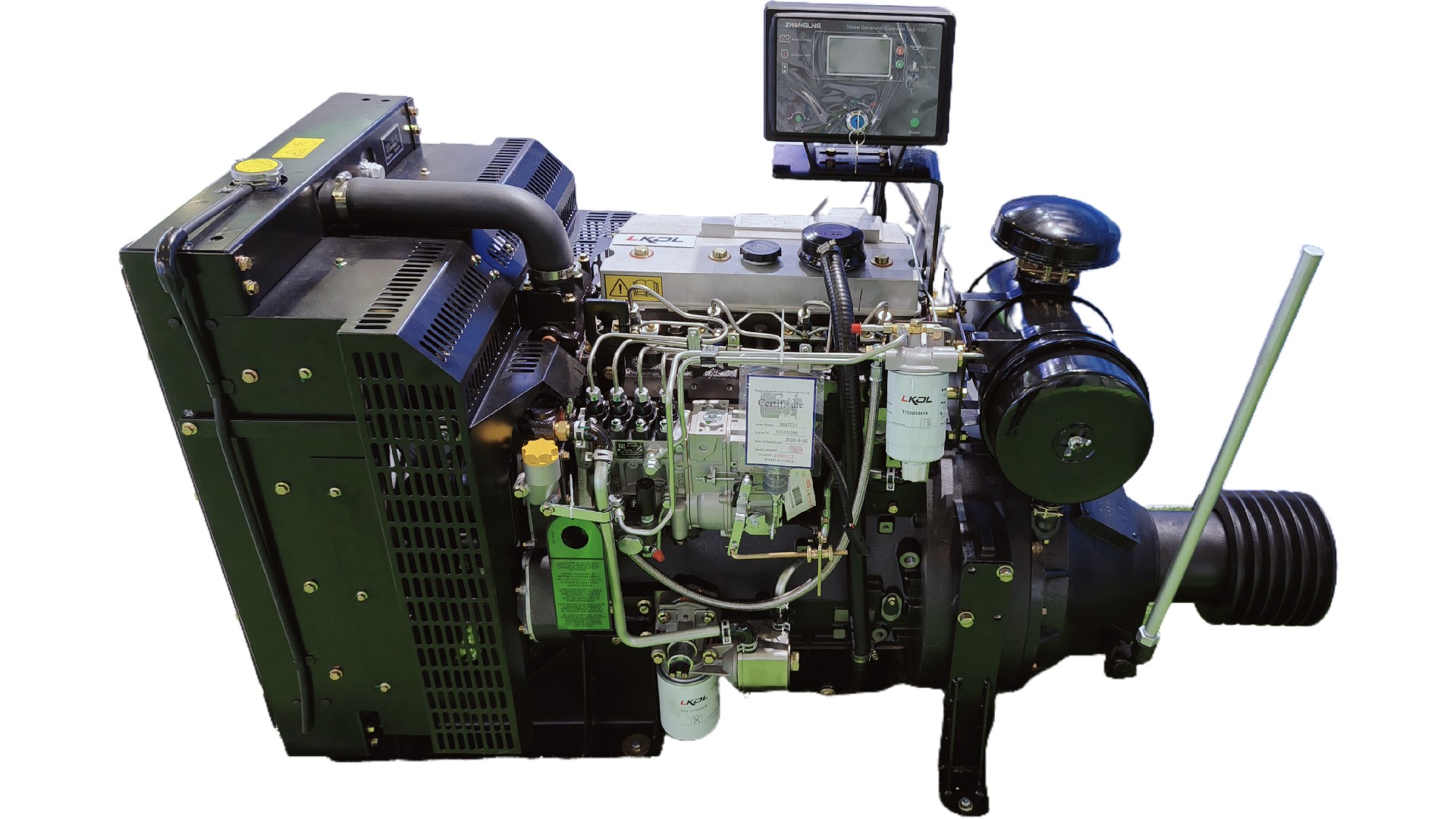

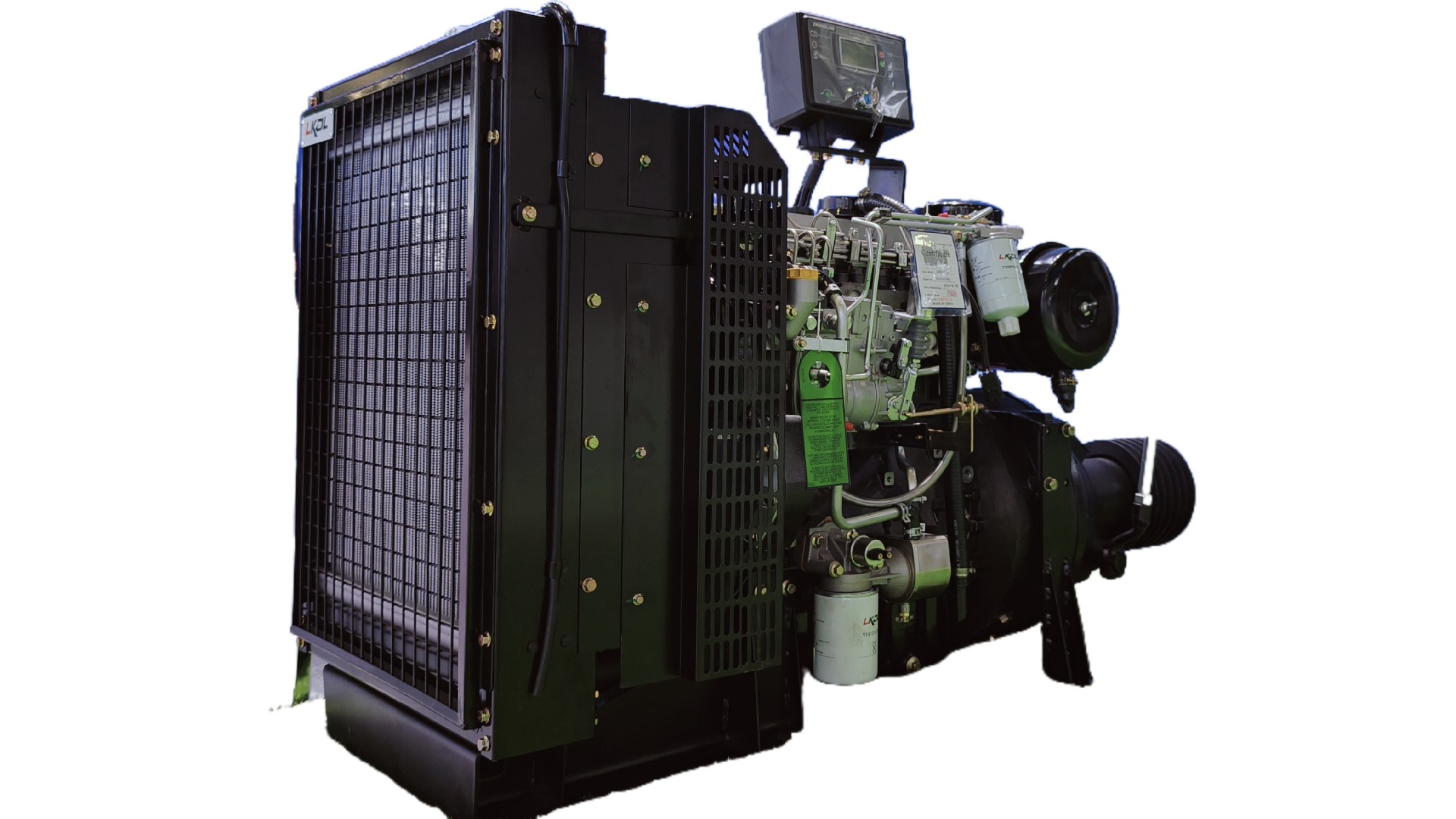

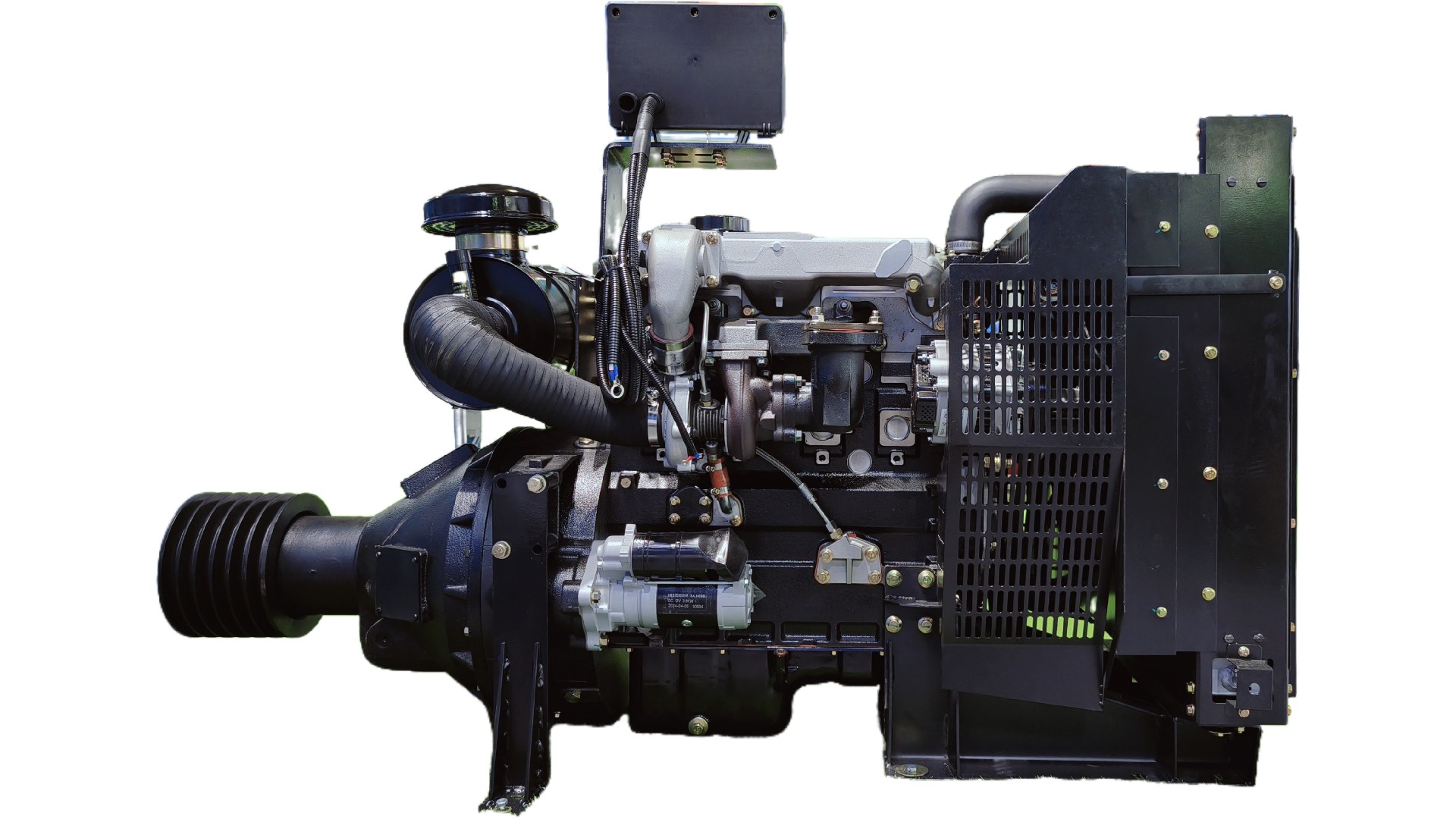

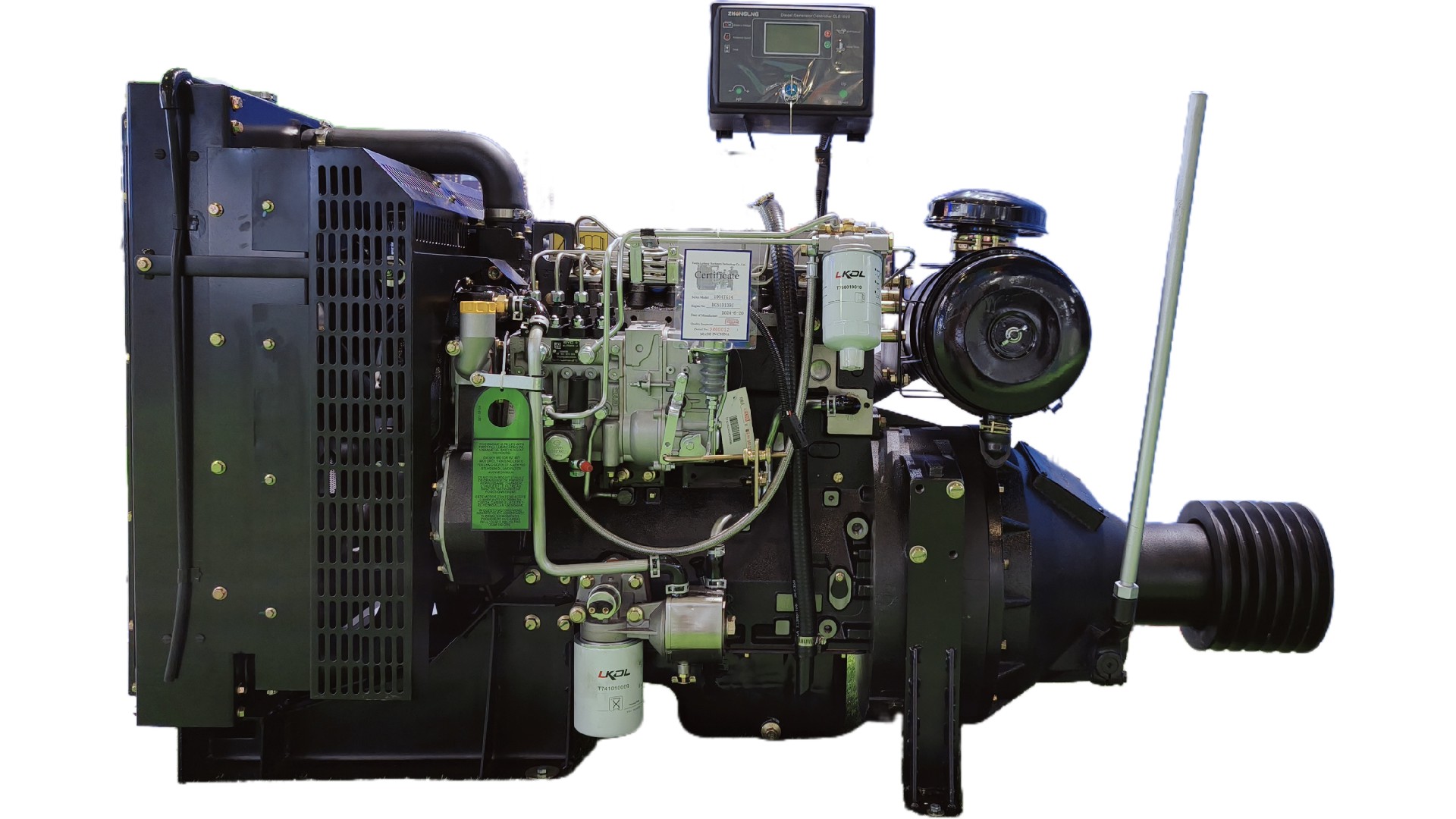

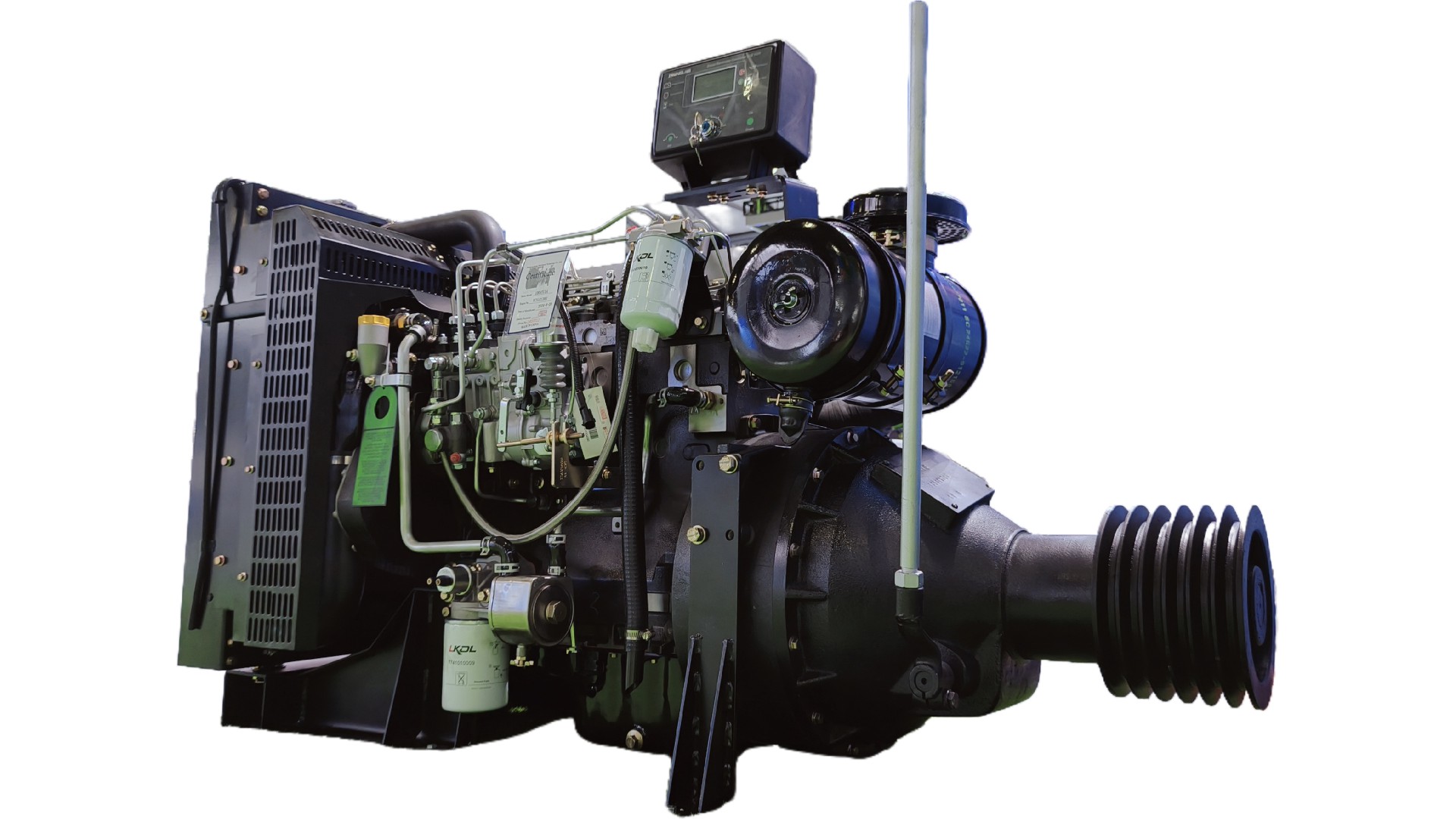

1004-4TZ

WATER PUMP APPLICATION

40Kw/1500 rpm

44Kw/1800 rpm

50Kw/2200 rpm

The engine has a good start-up function at low temperature. lt canbe normally started up at -10'℃without preheating device; withintake assistant device as electricheater, the engine can besuccessfully started up at -25℃

With radiator and separate fandrive, the engine can keep normaloperation at such a high ambient temperature as 50℃.

The panel and control box whichcan alarm and stop the engine whenwater temperature is high or oilpressure is low or rotating speedexceeds its limits make manipulation convenient, simpleand reliable.

Air filter, radiator and base frame are supplied with the engine, which results in covenient installation and use, Clutch also can be supplied as per user's demand.

Rating Base: Iso 8528, GB/T2820

Lubricating oil: API CF

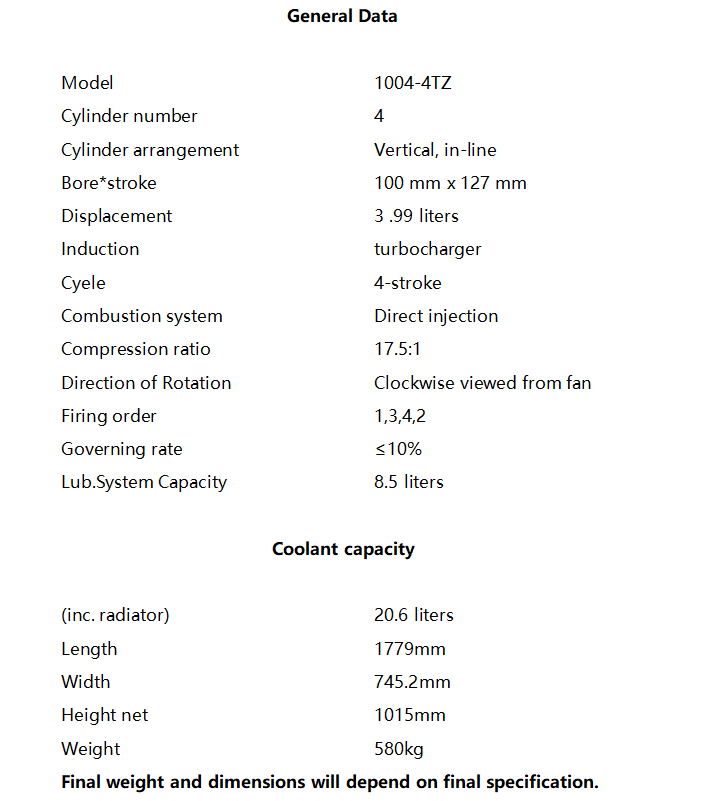

Standard Specification

Air inlet

Mounted air filter and turbocharger

Fuel system

In-line fuel injection pump

Spin-on full flow fuel filter and pre-filter

Lubrication system

Flat bottomed iron sump Spin-0n

full flow oil filter Oil cooler

Cooling system

Thermostat controlled cooling system、with gear driven water pump

Radiator

20"belt-driven pusher fan and guards

Electrical system

12 volt starter motor and alternator Oil

pressure and water temperature switch & sensor

1 2 volt shut down solenoid

Flywheel and housing

High inertia flywheel, size :10/11 vz

SAE3 flywheel housing

Mountings

Front engine mounting bracket

Optional Equipment

24 volt alternator

24 volt starter motor

Clutch

Meter box
